FLOAT SWITCH FOR WATER TANK

“Float switch ; As name suggests, is a type of switch that floats into the water. Float switch is used to control a pump or a valve depending upon the requirement.”

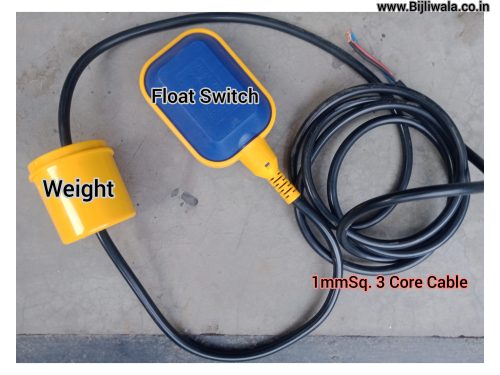

The float switch consists of hollow plastic chamber in which a limit switch is attached with mechanical lever. A cable is connected to the limit switch, most probably 3 core cable if limit switch is a ‘changeover switch’. A heavy weight is tied on the cable, In some float switches weight is not required.



Float switch
Float switch



Float switch has total two states:
1. free fall state
2. uplift state
1. Free fall state :
When tank is empty, Float switch stays in free fall state. In this, float switch remains in hanging state in which control cable, weight & float switch; all are aligned in straight line.(shown in an image below)
2. Uplift state :
When water tank is full. Float switch stays in uplift state. In this uplift state an English alphabet letter ‘J’ get made with cable, weight & float switch. (shown in an image below)

Float switch in 'free fall state'
Float switch ‘free fall state’



Float switch in 'Uplift state' making an alphabet J
Float switch in ‘Uplift state’ making an alphabet J



WORKING OF FLOAT SWITCH

‘Changeover relay’ & ‘mechanical lever’ arrangement are the key components in float switch. Entire working depend upon that two things.
That’s why it is very much important to understand the changeover relay & mechanical lever first.



CHANGEOVER RELAY

Changeover relay is a type of switch which controls the circuit through another circuit, Indirectly. It consists of three contacts ‘Common, ‘NC(Normally closed) ‘& ‘NO(normally open)‘.

A Schematic diagram of  electromagnetic relay is shown below. In that arrangement, It is seen that an electromagnetic coil is place behind the changeover relay. Contact’s jumper is connected with a spring Which pulls the common contact towards the NC contact.

Schematic diagram of Changeover relay
Schematic diagram of Changeover relay

At initial normal state, common contact is connected with NC contact while at forced state; common contact gets connected to the NO contact. The forced state of relay can be achieve by physical force like in roller-lever limit switch or through electrical signal as in Electromagnetic relay.

When external force on relay get removed then due to the mechanical spring, Common contact get pulled back towards the NC contact.

Symbol of changeover relay printed on digital timer
Symbol of changeover relay

MECHANICAL LEVER :

A mechanical lever is rigid solid element which moves on a single point. Mechanical lever normally contains two ends. Force produced on one end produces the parallel movement on another end. A bit movement on one side produces an larger movement on another side.

A GIF of mechanical lever shown below :

GIF shows the working of mechanical lever
                              Mechanical lever



Now back to the topic !

In metallic ball based float switch; A heavy metallic ball is placed along with a lever & a changeover relay.

A cable is connected to the changeover relay & brought out of the plastic chamber. The whole float chamber is IP68 ingress protected. Inner view of float switch is shown below:

Inside hollow float Switch
Inner view of float Switch



  1. Free Fall state :

When water is empty & float switch is hanging freely. The metallic ball pushes the lever downward; In turn; lever’s another side presses the push button of changeover relay. Relay get shifted to forced state from normal state. COMMON contact get connected to NO contact.

Positioning of lever & metal ball inside the float switch
Positioning of lever & metal ball inside the float switch

Positioning of lever & metal ball inside the float switch
Positioning of lever & metal ball inside the float switch



2. Uplift state :

When water is full. The float switch pushed upward. Which results metallic ball get shifted to opposite of lever & due to removed force, relay get back to its normal state. Where COMMON contact get connected back with NC ‘ contact.



Positioning of weight on float switch’s Cable

The weight which is placed on the cable of float switch; play a very important role.

When float switch is hanging freely into an empty tank, Connected weight don’t do anything. But it works When float switch is immersed into the water. Let understand this !



APPLICATIONS OF FLOAT SWITCH

Float switch has only a changeover relay through which we can implement multiple circuits for multiple applications. Next, we will discuss some of the applications & their circuits one by one.



Circuit to fill the tank For Single phase pump

Neutral is directly connected to the pump & Phase is passes through the 2way selector switch & ‘NO  contact of the changeover relay.

At these connections, When selector switch in closed position(acting like on/off) & float switch fall freely into the empty tank making the ‘NO  contact closed. Pump gets power supply & starts pumping the water into the tank until the float switch get lifted up OR selector switch shifted to open position. This circuit helps to prevent overflow condition.

Float switch rating should be consider according to pump’s rating. Otherwise, changeover relay can get damaged.

CIRCUIT :

Circuit for single phase pump with automatic cut off at high level through float switch
Float Switch Circuit for single phase pump with automatic cut off at high level

Circuit to fill the tank For Three phase pump running on DOL Starter

In single phase circuit, Pump is directly controlled through changeover relay but In 3 phase motor, Motor should be controlled through a Contactor.

Motor terminals & 3phase supply is connected across the contactor. To implement tank filling circuit on 3phase pump running on DOL Starter; We just need to replace single phase Motor with a 3 pole contactor with coil voltage 230VAC,50Hz. As shown in an image below

CIRCUIT:

Circuit for 3 phase pump running on DOL starter through float switch
Float switch circuit for 3 phase pump running on DOL starter



Circuit to empty the tank for Single phase pump

Again neutral is directly connected to pump. Phase is passes through the selector switch & ‘NC  contact of the changeover relay. At these connections, Pump is used to empty the filled tank. Pump starts emptying the tank when selector switch in closed position & float switch in uplift position making the relay’s NC ‘ contact closed.

We can also use this circuit as a safety from dry run condition in which pump don’t operate until water level is above than the minimum desired level.

CIRCUIT:

Circuit for single phase pump to empty the filled water tank through float switch
float switch circuit for single phase pump to empty the filled water tank

Circuit to empty the tank with 3 phase pump running on DOL Starter

In single phase circuit, Pump is directly controlled through changeover relay for float switch but in 3 phase, Pump should be controlled through contactor whose coil’s voltage is 230VAC. As described above.



SUMMARY

  • Float switch is a type of switch that floats into the water. Which is used to control a pump or a valve.
  • The float switch consists of hollow plastic chamber in which a limit switch is attached with mechanical lever.
  • Changeover relay & mechanical lever arrangement are the key components in float switch. Entire working depend upon that two components.
  • Changeover relay in float switch; is utilized to implement multiple circuits.

FAQ List:

Q1: What is a float switch?
A1: A float switch is a device used to automatically control the water level in a tank. It detects the water level and turns pumps or valves on or off to maintain a desired level.

Q2: How does a float switch work?
A2: A float switch has a buoyant float that rises and falls with the water level. When the water reaches a set height, the switch triggers a relay or circuit to turn the pump on or off.

Q3: Can a float switch prevent tank overflow?
A3: Yes. Float switches are commonly used to stop water pumps automatically when the tank is full, preventing overflow.

Q4: What are the types of float switches?
A4: Float switches can be mechanical, electronic, vertical, or horizontal, depending on installation and tank design.

Q5: How do I wire a float switch to a water pump?
A5: A float switch can be wired to the pump using a relay or directly if ratings match. Usually, it’s connected in series with the pump circuit for automatic operation.

Q6: Can I use a float switch for both high and low water protection?
A6: Yes. Installing two float switches—one for high-level (to stop the pump) and one for low-level (to start the pump)—is common practice.

Q7: What maintenance does a float switch require?
A7: Regular cleaning of the float, checking wiring and contacts for corrosion, and periodic testing are necessary to ensure proper operation.

Q8: Is it safe to install a float switch myself?
A8: Yes, if you follow the manufacturer’s instructions and ensure electrical connections are insulated and waterproof. For high-capacity pumps or complex setups, consulting a professional is recommended.

Q9: Where can I find a circuit diagram for a float switch setup?
A9: Circuit diagrams are available in the user manuals of float switches and online. Typically, they show the float switch connected to a relay that controls the pump.

Q10: Can a float switch be used for liquids other than water?
A10: Some float switches are designed only for clean water. For chemicals or corrosive liquids, you must use a switch made from compatible materials.
